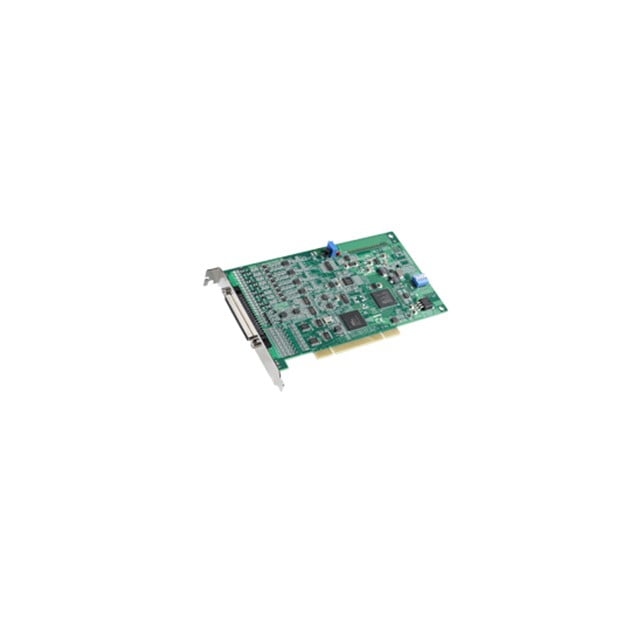

Advantech 16-bit Simultaneous 8-Channel Sampling Universal PCI Multifunction Card (PCI-1706U-AE)
Deskripsi
| Category | Attribute | Value |
| Analog Input | Channels | 8 |
| Analog Input | Input Range | ±1.25 V, ±2.5 V, ±5 V, ±10 V |
| Analog Input | Resolution(Bits) | 16-bit |
| Analog Input | Sampling Rates(S/s) | 250 KS/s (per channel) |
| Analog Output | Channels | 2 |
| Analog Output | Output Ranges | 0~5 V, 0~10 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA |
| Analog Output | Resolution | 12-bit |
| Analog Output | Update Rate(S/s) | Static update |
| General | Programming Language | C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt |
| Counter/Encoder Input | Channels | 2 |
| Counter/Encoder Input | Counting Range | 32-bit |
| Digital Input | Channels | 16 (TTL) |
| Digital Output | Channels | 16 (TTL) |
Informasi Tambahan
| Brand | Advantech |
|---|
