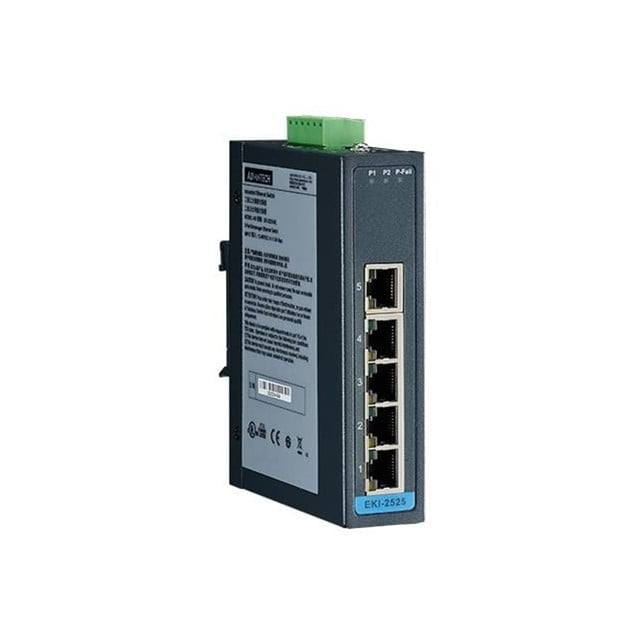

Advantech 5-port 10/100Mbps Unmanaged FE Switch (EKI-2525I-BE)
Deskripsi
SPESIFICATION
| Category | Attribute | Value |
| General | Ethernet Port Count | 5 |
| General | Mounting | DIN, Panel |
| General | Power | 12-48VDC |
| General | Technology | Ethernet |
| General | Temperature | -40 to 75C |
| General | Unmanaged | Yes |
| Power | Power Connector Type | 6-pin removable screw terminal |
| Power | Power Consumption | 2.88W |
| Power | Power Input (AC) | – |
| Power | Power Input (Battery) | – |
| Power | Power Input (DC) | 12 ~ 48 VDC |
| Power | Power Input (PoE) | – |
| Power | Redundant Dual Inputs | Yes |
| Protection | Overload Current | Present |
| Protection | Reverse Polarity | Present |
| Environment | Temperature (Max. Operating) | 75°C (167°F) |
| Environment | Temperature (Min. Operating) | -40°C (-40°F) |
| Environment | Temperature (Operating Range) | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Temperature (Storage Range) | -40 ~ 85°C (-40 ~ 185°F) |
| Mechanism | Dimensions (W x H x D) | 30 x 120 x 95 mm (1.18 x 4.72 x 3.74 in.) |
| Mechanism | Enclosure (Plastic) | – |
| Mechanism | IP Rating | IP30 |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Mounting (Panel) | – |
| Mechanism | Mounting (Pole Mount) | – |
| Mechanism | Mounting (Rack Mount) | – |
| Mechanism | Mounting (Stack) | – |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Weight | – |
| Ethernet Communication | Fiber Port Connector Type | – |
| Ethernet Communication | Fiber Port Interface | – |
| Ethernet Communication | Fiber Port Number | – |
| Ethernet Communication | Fiber Transmission Distance | – |
| Ethernet Communication | Fiber Transmission Speed | – |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Port Number | 5 |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100 Mbps |
| Certification | EMI | CE, FCC Class A |
| Certification | EMS | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8 |
| Certification | Safety | UL/cUL 60950-1, Class I Division 2 |
| Warranty | Warranty Period | 5 years |
| PoE Information | PoE Budget | – |
| PoE Information | PoE Output | – |
| PoE Information | PoE Port Number | – |
| PoE Information | Support PoE | No |
Informasi Tambahan
| Brand | Advantech |
|---|
