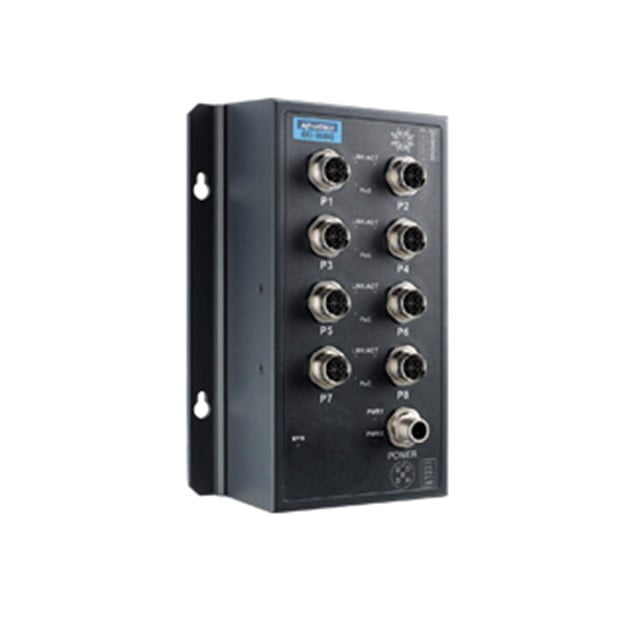

Advantech EN50155 M12 8GE Unmanaged Switch (EKI-9508G-L-AE)
- 8 x M12 X-coded 10/100/1000Mbps ports
- Complies with EN50155 & EN50121-3-2
- Operating temperature range -40 ~ 70°C
- Operating Voltage: 16.8~60 VDC
- M12 connector with rugged housing
Deskripsi
| Category | Attribute | Value |
| Power | Power Connector Type | 6-pin removable screw terminal (power & relay) |
| Power Consumption | Max. 7W | |
| Power Input (AC) | 24 VAC | |
| Power Input (Battery) | – | |
| Power Input (DC) | 12 ~ 48 VDC | |
| Power Input (PoE) | – | |
| Power Operating Current | 1A @ 24 VDC | |
| Redundant Dual Inputs | Yes | |
| Protection | Overload Current | Present |
| Reverse Polarity | Present | |
| Environment | Temperature (Max. Operating) | 75°C (167°F) |
| Temperature (Min. Operating) | -40°C (-40°F) | |
| Temperature (Operating Range) | -40 ~ 75°C (-40 ~ 167°F) | |
| Temperature (Storage Range) | -40 ~ 85°C (-40 ~ 185°F) | |
| Mechanism | Dimensions (W x H x D) | 59.6 x 152 x 105 mm (2.35 x 5.98 x 4.13 in.) |
| Enclosure (Plastic) | – | |
| IP Rating | IP30 | |
| Mounting (DIN-rail) | Yes | |
| Mounting (Panel) | – | |
| Mounting (Pole Mount) | – | |
| Mounting (Rack Mount) | – | |
| Mounting (Stack) | – | |
| Mounting (Wall) | Yes | |
| Ethernet Communication | Fiber Port Connector Type | SC Type |
| Fiber Port Interface | Single-Mode | |
| Fiber Port Number | 2 | |
| Fiber Transmission Distance | UP to 10 km | |
| Fiber Transmission Speed | 1000 Mbps | |
| RJ-45 Port Connector Type | RJ-45 | |
| RJ-45 Port Number | 6 | |
| RJ-45 Transmission Distance | 100 m | |
| RJ-45 Transmission Speed | 10/100/1000 Mbps | |
| Certification | EMI | CE, FCC Class A |
| EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) | |
| Safety | – | |
| Warranty | Warranty Period | 5 years |
| PoE Information | PoE Budget | – |
| PoE Output | – | |
| PoE Port Number | – | |
| Support PoE | No |
Informasi Tambahan
| Brand | Advantech |
|---|
