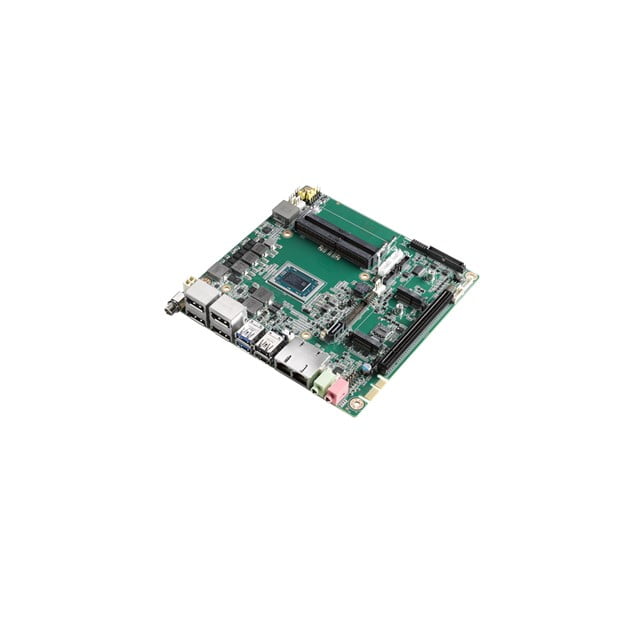

Advantech miniITX V1605B 4DP/6USB/6COM/2Gb/2M.2 (AIMB-228VG2-02A1E)
Deskripsi
| Category | Attribute | Value |
| Display | Controller | AMD Integrated Vega GCN |
| Display | DP/HDMI | 4DP |
| Display | Graphic Engine | DirectX10, OpenGL 2.0, H.264 and VC1 support |
| Display | Graphic Memory | Share with system memory up to 128 MB |
| Display | LCD (TTL/LVDS/eDP) | LVDS: Dual channel 48-bit up to 1920 x 1200 |
| Display | Multiple Display | Four DP displays |
| I/O | COM Port | 6 (5 x RS232,1 x RS232/422/485; 1 support CCtalk, 1 support TTL) |
| I/O | GPIO | 1, 16-bit GPIO |
| I/O | USB3.0/2.0 | 2/2 |
| Memory | Max. Capacity | Max. up to 32 GB (16 GB per SODIMM) |
| Memory | Socket | 2 x 260 Pin DDR4 SO-DIMM |
| Memory | Technology | DDR4 2666MHz SO-DIMM |
| Processor | BIOS | AMI 128Mbit SPI |
| Processor | CPU | AMD Ryzen™ Embedded V1605B processor |
| Processor | L2 Cache | 2 MB |
| Processor | Max Speed | 3.6GHz |
| Storage | SATA | 2 x SATA III (Max. Data Transfer Rate 600 MB/s) |
| Operating System | Linux | Yes |
| Operating System | Microsoft Windows | Yes |
| Operating System | SUSIAccess | Yes |
| Environment | Non-Operational Temperature | -40~ 85° C |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Vibration Resistance | 3.5 Grms (non OP) |
| Power | Connector | DC jack, internal 4pin |
| Power | Power Type | ATX, AT |
| Ethernet | Connector | RJ45 x 2 |
| Ethernet | Controller | GbE1: Realtek RTL8111E; GbE2: Realtek RTL8111E |
| Ethernet | Speed | 10/ 100/ 1000 Mbps |
| Audio | Audio Interface | HD Audio |
| Audio | CODEC | Realtek ALC888S, High Definition Audio (HD) |
| Audio | Connector | 2 (Line out, Mic In) |
| Watchdog Timer | WatchDog Timer | Yes |
| Certification | EMC | CE, FCC |
| Expansion | PCI Express x 8 | 1 |
| Expansion | Slot Type | 1 |
| Physical | Construction | with CPU cooler design |
| Physical | Dimension (mm) | 170x 170 mm (without heatsink) |
| Physical | Weight | 1.04 kg (1.72 lb), weight of total package |
Informasi Tambahan
| Brand | Advantech |
|---|
