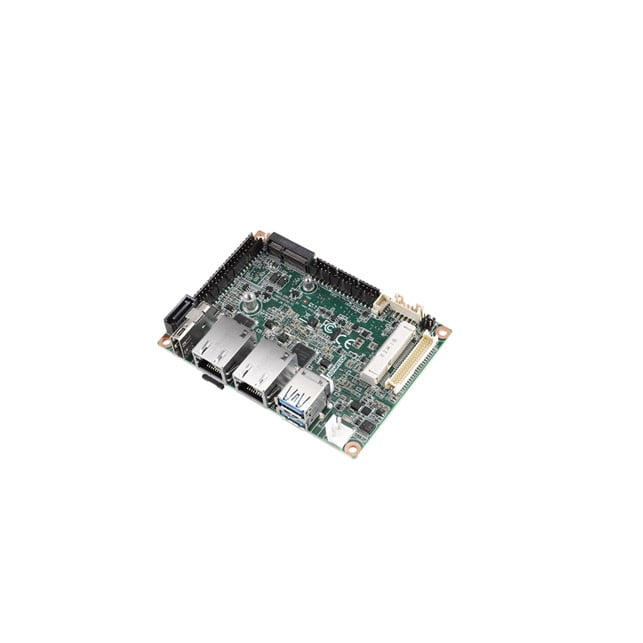

Advantech MIO-2361 Intel Atom Pico-ITX Single Board Computer (MIO-2361EW-S7A2)
Deskripsi
| Category | Attribute | Value |
| Display | Dual Display | HDMI+LVDS |
| Display | Graphic Engine | DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC |
| Display | HDMI | Up to 3840 x 2160 at 30Hz |
| Display | LVDS | 48-bit LVDS up to 1920 x 1200 at 60Hz |
| Memory | Onboard Memory | 4GB |
| Processor | BIOS | AMI EFI 64 Mbit |
| Processor | Chipset | Intel Celeron / Atom SoC processor integrated |
| Processor | Core Number | 4 |
| Processor | CPU | Intel Pentium N4200 Celeron N3350 & Atom™E3950/E3940/E3930 |
| Processor | Frequency | 2.0 GHz |
| Processor | L2 Cache | 2 MB |
| Processor | Max Turbo Frequency | 2 GHz |
| Storage | mSATA | 1 x Full-size mSATA (*share with mPCIe slot) |
| Storage | SATA | 1, up to 6Gb/s (600MB/s) |
| Operating System | Ubuntu | V |
| Environment | Non-Operational Temperature | -40 ~ 85° C (-10 ~ 185° F) |
| Environment | Operational Temperature | -40 ~ 85° C (-40 ~ 185° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Power | Battery | Lithium 3 V / 210 mAH |
| Power | Power Management | ACPI 3.0 |
| Power | Power Supply Voltage | Vin: 12V (default) or 24V input, ± 10% |
| Power | Power Type | 12V/24V power input |
| Ethernet | Connector | RJ45 on rear I/O |
| Ethernet | Controller | Intel® i210IT/i210AT |
| Ethernet | Speed | 10/ 100/ 1000 Mbps |
| Audio | Chipset | Realtek ALC888S, High Definition Audio (HD), Line-in, Line-out |
| Expansion | Mini PCIe | 1 x Full size (default) |
| Internal I/O | GPIO | 16-bit GPIO |
| Internal I/O | Serial | 1 RS-232/422/485 from COM 1, 2 RS-232 from COM2/3 (ESD protection: Air gap ±15kV, Contact ±8kV) |
| Internal I/O | SMBus | 1 |
| Internal I/O | USB2.0 | 2 |
| Physical Characteristics | Dimensions (L x W) | 100 x 72 mm (3.9″ x 2.8″) |
| Rear I/O | DC Jack* | 1 (Optional) |
| Rear I/O | Ethernet | 2 |
| Rear I/O | HDMI | 1 |
| Rear I/O | USB | 2 x USB 3.0 |
Informasi Tambahan
| Brand | Advantech |
|---|
