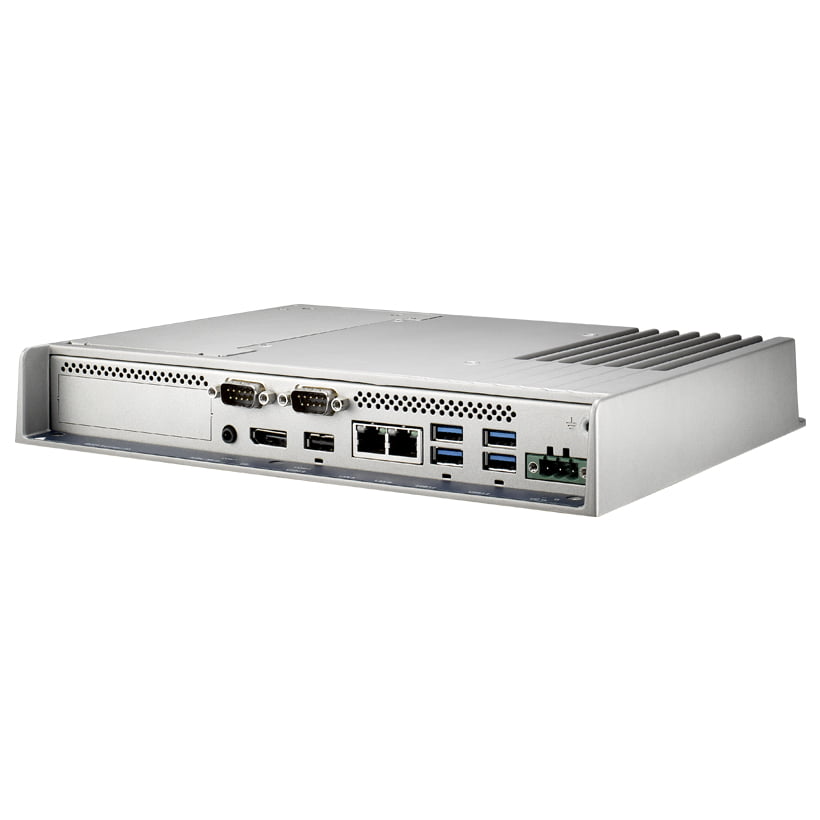

Advantech Modular TPC Box, Core i7-8665UE, 8G RAM (TPC-B510-873AE)
Deskripsi
| Category | Attribute | Value |
| General | Humidity (Operating) | 10~95% RH (non-condensing) |
| Hardware | Certification | CB, UL, CE, FCC Class A, CCC, BSMI |
| Hardware | Expansion | 1 x Full-size mPCIe slot |
| Hardware | Hardware Security | TPM 2.0 |
| Hardware | I/O | 2 x RS-232/422/485, 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor Slot, 1 x DP, 1 x Line out |
| Hardware | LAN | 2 x 10/100/1000 Mbps |
| Hardware | Memory | 1 x SO-DIMM with 8 GB DDR4 2133 MHz |
| Hardware | OS Support | Microsoft® Windows 10 LTSC, Linux, Android |
| Hardware | Power Input | 24 VDC ±20% |
| Hardware | Storage | 1 x NVMe/SATA M.2 SSD slot (2280 M-key), 1 x SATA M.2 SSD slot (2242 B-key), 1 x 2.5″ SSD/HDD |
| Environment | Operating Temperature | -10~55 °C (14~131 °F) |
| Environment | Storage Temperature | -20~70 °C (-4~158 °F) |
| Environment | Vibration Protection | 1 Grms |
| Mechanical | Dimension (W x H x D) | 269 x 203 x 40 mm |
| Mechanical | Mounting | Panel, Wall, Stand, VESA |
| Mechanical | Weight (Net) | 4.5 kg |
Informasi Tambahan
| Brand | Advantech |
|---|
