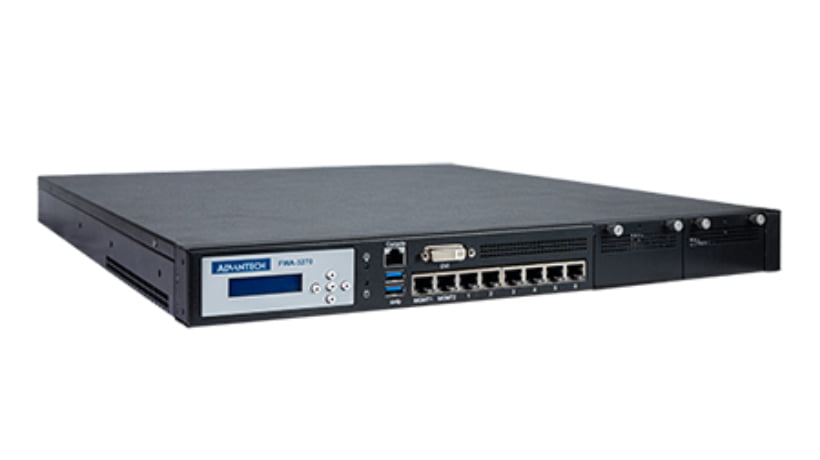

Advantech Network Appliance,C236,AC(1+1),2NMC,Latch,HDMI (FWA-3270A-00A1E)
Deskripsi
| Category | Attribute | Value |
| Display | Display | HDMI |
| I/O | Console port | 1 x RJ45 |
| I/O | GPIO | 8-bit GPIO |
| I/O | LED Indicator | 1 x Power led, 1 x HDD LED |
| I/O | Others | RS232, 2x USB option |
| I/O | Reset button | Pin Header |
| I/O | USB3.0 | 4 (2 in front+2 with pin header) |
| Memory | ECC Support | Yes (E3 CPU only) |
| Memory | Max. Capacity | 4 x DIMM Slots Expandable to 64GB |
| Memory | Socket | 4 x 288-pin UDIMM |
| Memory | Technology | Dual Channel DDR4 with 2133/2400 MHz |
| Storage | 2.5″ HDD/SSD | 2 x 2.5″ SATA HDD/SSD bay |
| Storage | 3.5″ HDD | 1 x 3.5″ SATA HDD bay |
| Storage | m.2 SSD | 1 x m.2 SSD (2242/2260/2280) |
| Storage | mSATA SSD | 1 x Half-Size mSATA SSD |
| Environment | Non-operating Temperature | -40 ~ 60° C (-40 ~ 140° F) |
| Power | Input | 100 V ~ 240 V |
| Power | Power Type | AC, redundant and non-redundant DC, redundant DC (optional) |
| Power | Watts | 300W |
| Processor System | BIOS | AMI EFI 64 Mbit |
| Processor System | Chipset | C236 |
| Processor System | Core Number | 2C/4C |
| Processor System | Frequency | 2.4GHz~3.6GHz |
| Processor System | L2 Cache | 2MB/4MB/8MB |
| Processor System | Processor | Socket LGA 1151 (E3-1200v5; 6th Core-I; Pentium; Celeron®) |
| Cooling | Cooling | 4x system samrt FAN |
| Certification | CE/FCC/CB/UL/CCC | |
| Mechanical | Construction | Iron |
| Mechanical | Dimensions (W x H x D) | 430 x 44 x 500 mm (16.9″ x 1.7″ x 19.6″) |
| Mechanical | Mounting | 1U Rackmount |
| Mechanical | Weight | 10 kg |
| Environment | Humidity | 95% @ 40° C (non-condensing) |
| Environment | Operating Temperature (air flow 0.7 m/sec) | 0 ~ 40 °C (32 ~ 104 °F) |
| Environment | Shock Protection | with SATA HDD: 10G, 11ms, IEC-60068-2-27, X, Y, X-X,-Y-Z axis, 3times per axis |
| Environment | Vibration Resistance | with SATA HDD: 0.5 Grms, IEC 60068-2-64, 5-500Hz, 1hr/axis |
| OS Support | Linux (CentOS, Red Hat, Ubuntu, etc.), Windows*10 | |
| IPMI | IPMI | Opiton |
| Networking | 1GbE | 8 x 10/100/1000 Mbps RJ45 |
| Networking | Controller | 8 x Intel® i210-AT |
| Networking | LAN bypass Advanced | 3 x pair of LAN Bypass (default) |
| Networking | LAN bypass Legacy | 2 x pair of LAN Bypass (option by jumper) |
| Networking | NMC | 2 x NMC |
| Networking | PCIe x 4 | 2 x FH/HL gen3 x4 slot (option) |
| Networking | PCIe x 8 | 1 x FH/HL gen3 x8 slot (default) |
Informasi Tambahan
| Brand | Advantech |
|---|
