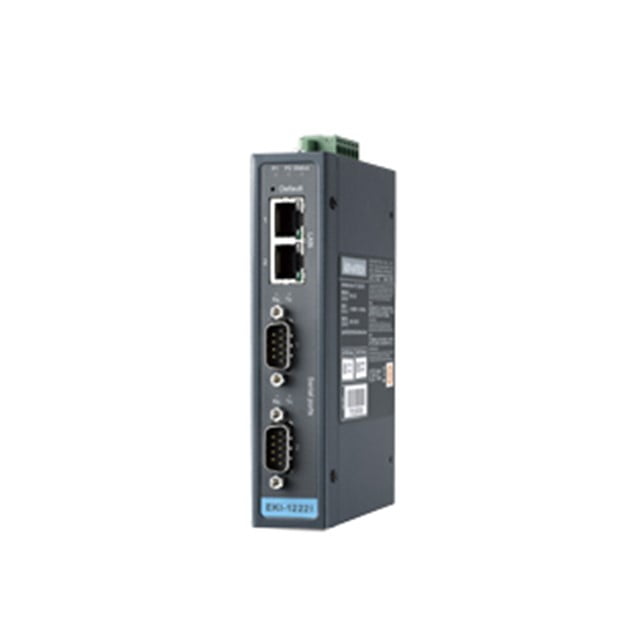

Advantech Serial Device Server, 2 x RS-232/422/485 DB9 M, Ind. DIN

Deskripsi

SPESIFICATION

Category	Attribute	Value
General	Ethernet Port Count	1
General	Mounting	DIN
General	Power	10-48VDC
General	Serial Port Count	1
General	Serial Type	RS-232/422/485
General	Technology	Serial
General	Temperature	-40 to 80C
Power	Power Consumption	4W
Power	Power Input (DC)	10 ~ 48 VDC
Serial Communication	Baud Rate	50 ~ 230.4 Kbps
Serial Communication	RS-232	Yes
Serial Communication	RS-422	Yes
Serial Communication	RS-485	Yes
Serial Communication	Serial Port Connector Type	DB9 & TB
Serial Communication	Serial Port Number	1
Serial Communication	Serial Transmission Speed	230.4 kbps
Software	Configuration	Windows utility, Web Browser
Software	Driver	Windows XP/7/8.1/10, Windows Server 2008
Software	Operation Mode	Virtual COM, TCP/UDP server TCP/UDP client
Environment	Humidity (Operating Range)	0~95%
Environment	Temperature (Max. Operating)	80°C (176°F)
Environment	Temperature (Min. Operating)	-40°C
Environment	Temperature (Operating Range)	-40 ~ 80°C (-40 ~ 176°F)
Mechanism	Dimensions (W x H x D)	120 x 80 x 29 mm
Mechanism	Enclosure (Plastic)	Yes
Mechanism	IP Rating	IP30
Mechanism	Mounting (DIN-rail)	Yes
Ethernet Communication	RJ-45 Port Connector Type	RJ-45
Ethernet Communication	RJ-45 Port Number	1
Certification	EMC	CE, FCC
Certification	EMI	CE, FCC
Certification	EMS	CE / FCC
Certification	Safety	NO
Warranty	Warranty Period	5 years
