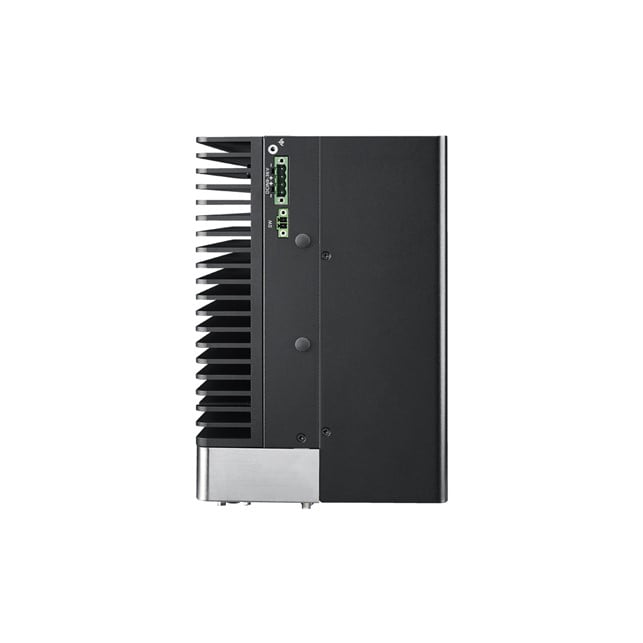

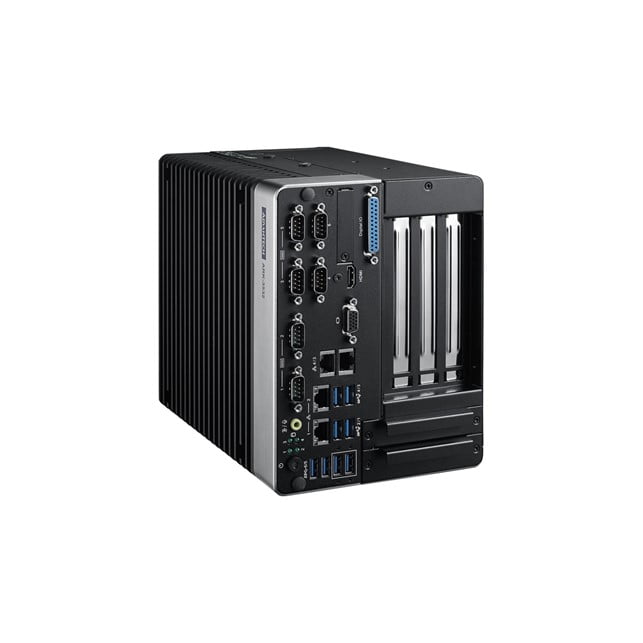

AdvantechIntel CML W480E PCIex4+2*PCI, 9-36V (ARK-3532C-00A1)
Deskripsi
SPESIFICATION
| Category | Attribute | Value |
| Display | HDMI | 1 |
| Display | Triple Display | Yes |
| Display | VGA | 1920 x 1200 at 60Hz |
| Memory | Max. Capacity | 64 GB |
| Memory | Socket | 2 x 260 pin SO-DIMM |
| Memory | Technology | DDR4 2933MHz SO-SIMM |
| Processor | Chipset | W480E |
| Processor | Core Number | 10/ 10/ 8/ 6/ 4/ 2 |
| Processor | CPU | Intel Xeon W-1290TE/Intel Core i9 10900E/Intel Core i7 10700E/Intel Core i5 10500E/Intel Core i3 10100E/Intel Celeron G5900E |
| Processor | L3 Cache | 20MB/ 20MB /16MB/ 12MB/ 6MB/ 2MB |
| Storage | HDD | HDD 2 x 2.5″ SATAIII 15mm height HDD bay support Intel SW RAID (Up to 4 x 2.5″ SATAIII HDD bays by optional AMK-A0035) |
| Storage | mSATA | mSATA 1 x mSATA socket (Share with Mini PCIe) |
| Environment | Humidity | Operating: 40° C @ 95% relative humidity, non-condensing |
| Environment | Operational Temperature | With extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow, with HDD: 0 ~ 40° C with 0.7m/s air flow |
| Environment | Shock Protection | With CompactFlash disk: 30Grms, IEC 60068-2-27 , half sine, 11 ms duration |
| Other | Watchdog Timer | 255 levels timer interval, setup by software |
| Ethernet | LAN | 10/100/1000 Mbps |
| Graphics | Chipset | Intel UHD Graphics 630 |
| Graphics | Graphic Engine | Direct x 12, OpenGL 4.4, HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8, HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 |
| Environment | Relative Humidity | 95% @ 40° C (non-condensing) |
| Environment | Temperature (Storage) | – 40 ~ 85° C (-40 ~185° F) |
| Environment | Vibration during Operation | With mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Power Requirement | Power Type | AT/ATX |
| Power Requirement | Voltage | 9~36V DC in |
| Software Development Kit | Linux | by Project support |
| Software Development Kit | Operating System | Windows 10 (64bit) |
| Expansion | M.2 | 1 x M.2 2230 E key for WIFI module |
| Expansion | Mini PCIe | 1 x Full-size Mini PCIe (1 x support mSATA, 1 x support SIM holder) #1 |
| Expansion | PCI Express x 16 | PCI-E x16 graphics card slot |
| Expansion | PCI Express x 4 | 1 |
| Power Consumption | Max. | 64.8W |
| Power Consumption | Typical | 30W |
| Regulation | EMC | CE/FCC Class B, CCC, BSMI |
| Regulation | Safety | CB, UL, CCC, BSMI |
