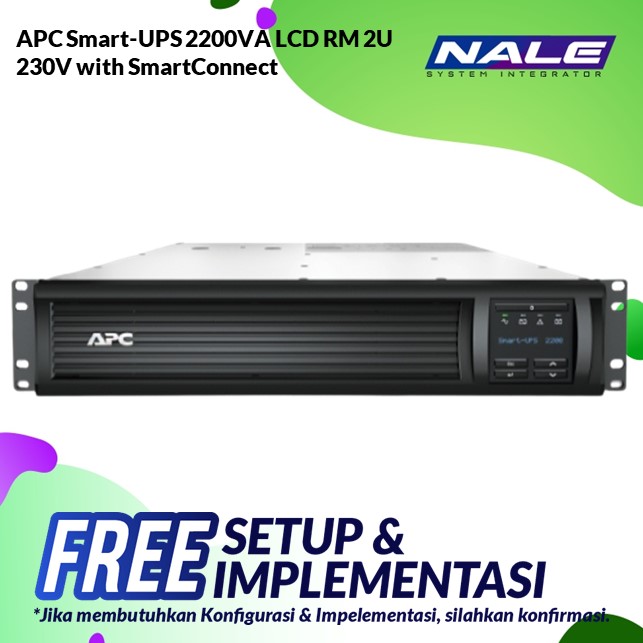

APC Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect (SMT2200RMI2UC)
Rp24.544.764
- PF: 0.9
- Back up time Full Load: 5,5 min (1980watt)
- Output power capacity : 1.98kWatts / 2.2kVA
- Rack Height: 2U

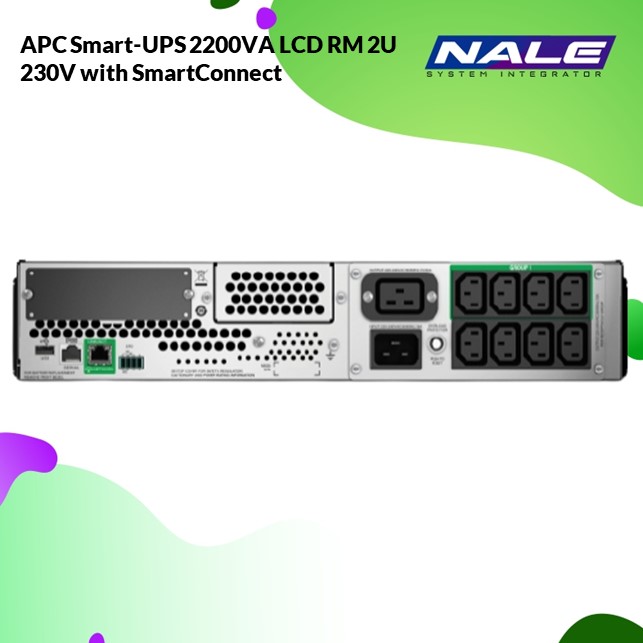

- Output Connections :
(8) IEC 320 C13 (Battery Backup)(1) IEC 320 C19 (Battery Backup)(3) IEC Jumpers (Battery Backup)
- Nominal Output Voltage : 230V
- Nominal Input Voltage : 230V
- Input Connections : BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
- Includes: Documentation CD, Rack mounting hardware, Rack mounting support rails, USB cable
Deskripsi
Deskripsi APC Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect (SMT2200RMI2UC)
| Output | |
| Max Configurable Power (Watts) | 1.98kWatts / 2.2kVA |
| Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
| Output Voltage Distortion | Less than 5 % |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
| Other Output Voltages | 220, 240 |
| Topology | Line interactive |
| Waveform type | Sine wave |
| Transfer Time | 6 ms typical : 10 ms maximum |
| Input | |
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
| Input voltage range for main operations | 151 – 302 Adjustable, 160 – 286V |
| Number of Power Cords | 1 |
| Other Input Voltages | 220, 240 |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Typical recharge time | 3hour(s) |
| Replacement Battery | RBC43 |
| Expected Battery Life (years) | 3 – 5 |
| RBC Quantity | 1 |
| Battery Charge Power (Watts) | 169 Watts |
| Communications & Management | |
| Interface Port(s) | RJ-45 Serial, SmartSlot, USB |
| Control panel | Multifunction LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Available SmartSlot™ Interface Quantity | 1 |
| Surge Protection and Filtering | |
| Surge energy rating | 375Joules |
| Physical | |
| Maximum Height | 86MM, 8.6CM |
| Maximum Width | 432MM, 43.2CM |
| Maximum Depth | 683MM, 68.3CM |
| Net Weight | 42.31KG |
| Conformance | |
| Approvals | CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE |
| Standard warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
