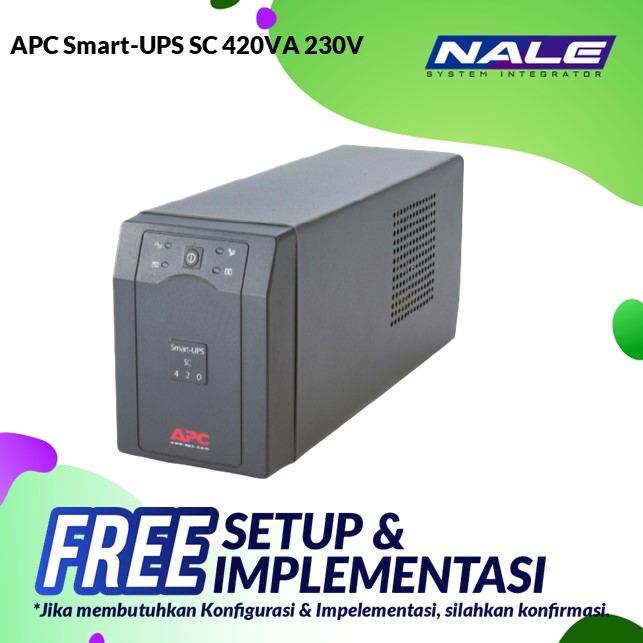

APC Smart-UPS SC 420VA 230V(SC420I)
Rp2.526.804
- Output power capacity: 260 Watts / 420VA

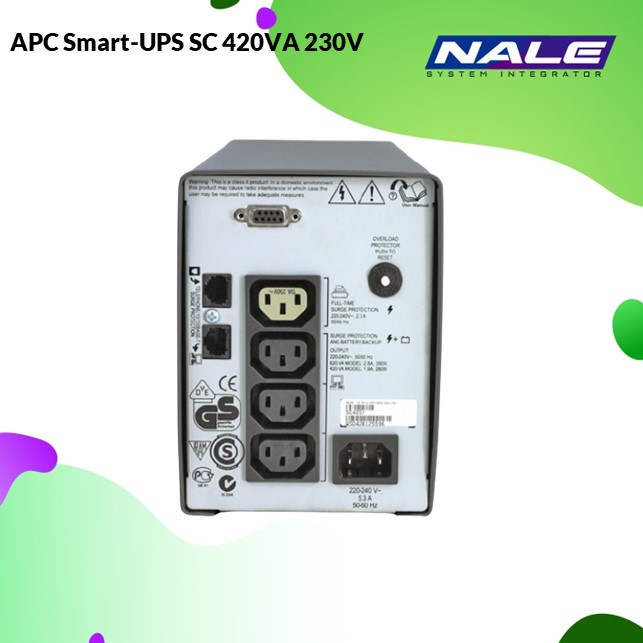

- Output Connections:
(2) IEC Jumpers (Battery Backup)(3) IEC 320 C13 (Battery Backup)(1) IEC 320 C13 (Surge Protection)
- Nominal Output Voltage: 230V
- Nominal Input Voltage: 230V
- Input Connections: IEC 320 C14
- PF: 0.6
- Back up time Full Load: 5,5 min (260watt)
Deskripsi
Deskripsi APC Smart-UPS SC 420VA 230V(SC420I)
| Output | |
| Max Configurable Power (Watts) | 260 Watts / 420VA |
| Output Voltage Distortion | Less than 5 % at full load |
| Output Frequency (sync to mains) | 47 – 53 Hz For 50 Hz nominal Sync to mains, 57 – 63 Hz For 60 Hz nominal Sync to mains |
| Topology | Line interactive |
| Waveform type | Stepped approximation to a sinewave |
| Transfer Time | 6 ms typical : 10 ms maximum |
| Input | |
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
| Input voltage range for main operations | 195 – 265V |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Typical recharge time | 3hour(s) |
| Replacement Battery | RBC2 |
| Expected Battery Life (years) | 3 – 5 |
| RBC Quantity | 1 |
| Battery Charge Power (Watts) | 28 Watts |
| Communications & Management | |
| Interface Port(s) | DB-9 RS-232 |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge Protection and Filtering | |
| Surge energy rating | 320Joules |
| Data Line Protection | RJ45 modem/fax/DSL/10-100 base-T protection |
| Filtering | Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Physical | |
| Maximum Height | 168MM, 16.8CM |
| Maximum Width | 119MM, 11.9CM |
| Maximum Depth | 368MM, 36.8CM |
| Net Weight | 9.09KG |
| Conformance | |
| Approvals | CE, EAC, GOST, NOM, VCCI, VDE |
| Standard warranty | 2 years repair or replace |
| Sustainable Offer Status | |
| RoHS | Compliant |
| PEP | Available in Documentation tab |
| EOLI | Available in Documentation tab |
