APC Easy UPS On-Line SRV RM 10000VA 230V(SRV10KRI)
Rp59.527.080
APC Smart UPS SRT 2200VA 230V (SRT2200XLI)
Rp25.174.800

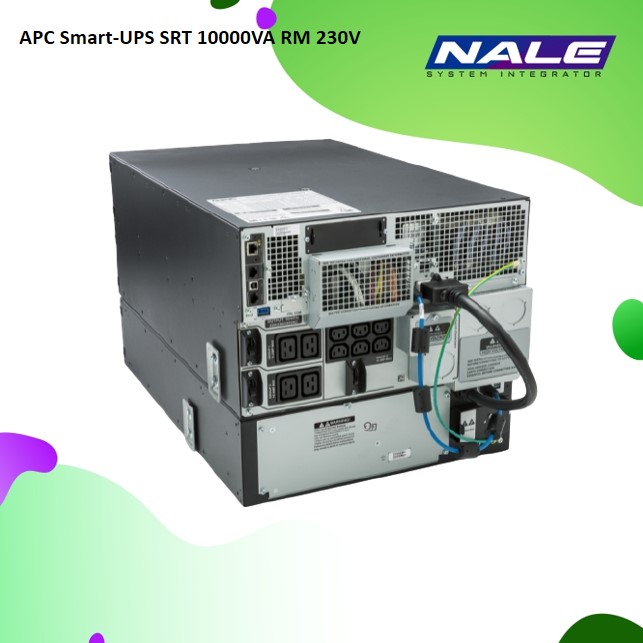

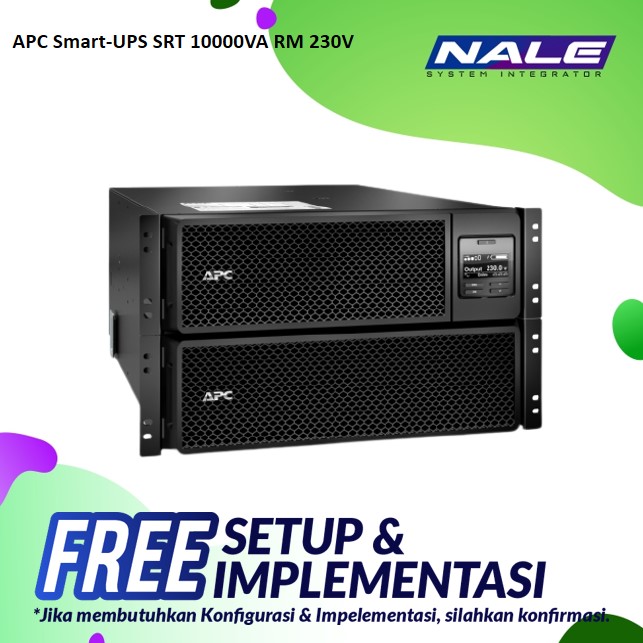

APC Smart-UPS SRT 10000VA RM 230V (SRT10KRMXLI)
Rp98.540.000
- PF: 1
- Back up time Full Load: 3.8 min (10000 watt)
- Output power capacity :10.0kWatts / 10.0kVA
- Rack Height : 6U
- Output Connections :
(3) IEC Jumpers (Battery Backup)(6) IEC 320 C13 (Battery Backup)(1) Hard Wire 3-wire (H N + G) (Battery Backup)(6) IEC 60320 C13 (Battery Backup)(4) IEC 60320 C19 (Battery Backup)(4) IEC 320 C19 (Battery Backup)
- Nominal Output Voltage : 230V
- Nominal Input Voltage : 230V, 400V 3PH
- Input Connections : Hard wire 3-wire (1P + N + E), Hard wire 5-wire (3P + N + E)
Deskripsi
Deskripsi APC Smart-UPS SRT 10000VA RM 230V (SRT10KRMXLI)
| Output | |
| Max Configurable Power (Watts) | 10.0kWatts / 10.0kVA |
| Output Voltage Distortion | Less than 2 % |
| Output Voltage Note | 220, 240 |
| Load Crest Factor | 3 : 1 |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
| Topology | Double conversion online |
| Waveform type | Sine wave |
| Bypass | Internal bypass (automatic and manual) |
| Input | |
| Input frequency | 40 – 70 Hz Auto-sensing |
| Input voltage range for main operations | 100 – 275 Adjustable (half load), 160 – 275, 173 – 476 Adjustable (half load)V |
| Numbet of Power Cords | 220, 240, 380, 415 |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Included Battery Modules | 1 |
| Typical recharge time | 1.5hour(s) |
| Nominal Battery Voltage | +/- 192 V (split battery referenced to neutral) |
| Replacement Battery | APCRBC140 |
| Expected Battery Life (years) | 3 – 5 |
| RBC Quantity | 2 |
| Battery Charge Power (Watts) | 1.195kWatts |
| Extended Run Time | 1 |
| Communications & Management | |
| Interface Port(s) | RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB |
| Avaiable SmartSlot™ Interface Quantity | 1 |
| Control panel | Multifunction LCD status and control console |
| Audible Alarm | Audible and visible alarms prioritized by severity |
| Emergency Power Off ( EPO) | Yes |
| Surge Protection and Filtering | |
| Surge energy rating | 480Joules |
| Physical | |
| Maximum Height | 263MM, 26.3CM |
| Maximum Width | 432MM, 43.2CM |
| Maximum Depth | 715MM, 71.5CM |
| Net Weight | 111.85G |
| Conformance | |
| Approvals | CE, EAC |
| Standard warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
