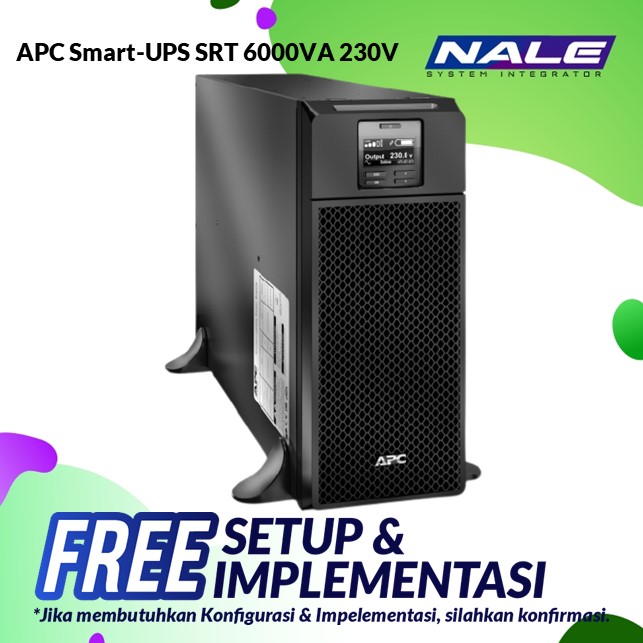

APC Smart-UPS SRT 6000VA 230V (SRT6KXLI)
Rp94.045.464
- PF: 1
- Back up time Full Load: 2.5 min (6000 watt)
-
Output power capacity: 6.0kWatts / 6.0kVA

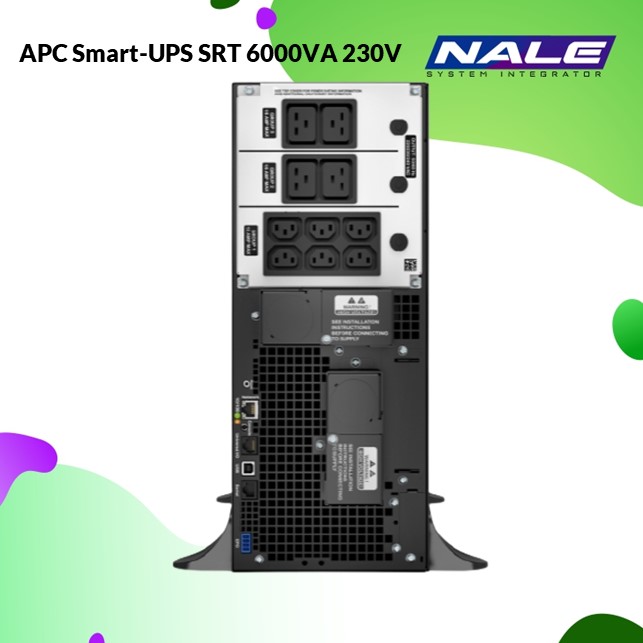

- Output Connections :
(6) IEC 60320 C13 (Battery Backup)(6) IEC 320 C13 (Battery Backup)(1) Hard Wire 3-wire (H N + G) (Battery Backup)(2) IEC Jumpers (Battery Backup)(4) IEC 320 C19 (Battery Backup)(4) IEC 60320 C19 (Battery Backup)
-
Nominal Output Voltage: 230V
-
Nominal Input Voltage: 230V
- Input Connections : Hard wire 3-wire (1P + N + E)
- Includes: CD with software, Documentation CD, Installation guide, Removable support feet, Temperature probe, USB cable, Warranty card, Web/SNMP management card.
Deskripsi
Deskripsi APC Smart UPS SRT 6000VA 230V (SRT6KXLI)
Output |
|
| Max Configurable Power (Watts) | 6.0kWatts / 6.0kVA |
| Output Voltage Distortion | Less than 2 % |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
| Other Output Voltages | 220, 240 |
| Load Crest Factor | 3 : 1 |
| Topology | Double conversion online |
| Waveform type | Sine wave |
| Bypass | Internal bypass (automatic and manual) |
Input |
|
| Input frequency | 40 – 70 Hz Auto-sensing |
| Input voltage range for main operations | 100 – 275 Adjustable (half load), 160 – 275V |
| Other Input Voltages | 220, 240 |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Included Battery Modules | 1 |
| Typical recharge time | 1.5hour(s) |
| Nominal Battery Voltage | 192 V |
| Replacement Battery | APCRBC140 |
| Expected Battery Life (years) | 3 – 5 |
| RBC Quantity | 1 |
| Battery Charge Power (Watts) | 597 Watts |
Communications & Management |
|
| Interface Port(s) | RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB |
| Control panel | Multifunction LCD status and control console |
| Audible Alarm | Audible and visible alarms prioritized by severity |
| Emergency Power Off (EPO) | Yes |
| Available SmartSlot™ Interface Quantity | 1 |
| Surge Protection and Filtering | |
| Surge energy rating | 480Joules |
| Physical | |
| Maximum Height | 432MM, 43.2CM |
| Maximum Width | 174MM, 17.4CM |
| Maximum Depth | 719MM, 71.94CM |
| Net Weight | 60.0KG |
| Conformance | |
| Approvals | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
| Standard warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
