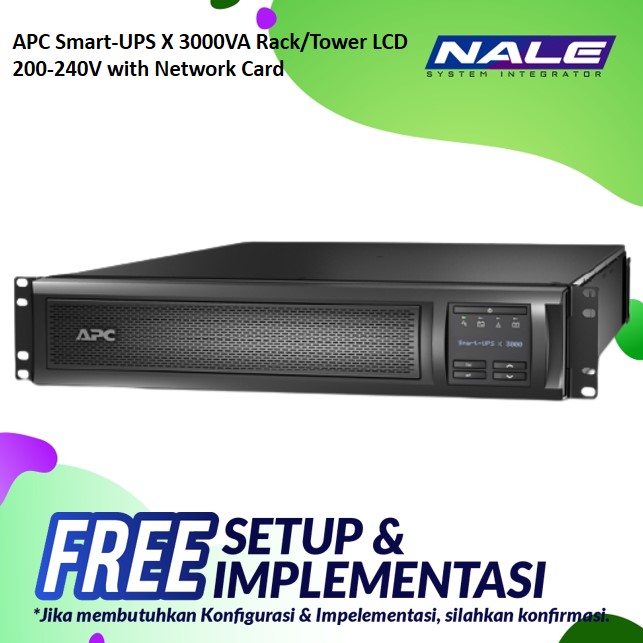

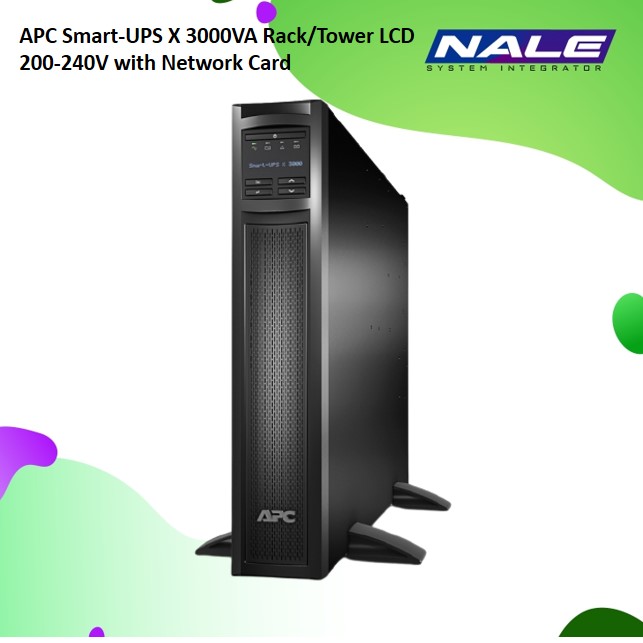

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card
Rp36.913.716
- PF: 0.9
- Back up time Full Load: 6,3 min (2700watt)
- Output power capacity : 2.7kWatts / 3.0kVA
- Rack Height: 2U
- Output Connections :
(2) IEC Jumpers (Battery Backup)(8) IEC 320 C13 (Battery Backup)(1) IEC 320 C19 (Battery Backup)
- Nominal Output Voltage : 230V
- Nominal Input Voltage : 208V, 230V
- Input Connections : BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
- Includes: CD with software, Rack mounting support rails, Smart UPS signalling RS-232 cable, Temperature probe, User manual, Web/SNMP management card
Deskripsi
Deskripsi APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card (SMX3000RMHV2UNC)
| Output | |
| Max Configurable Power (Watts) | 2.7kWatts / 3.0kVA |
| Output Voltage Distortion | Less than 5 % |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
| Other Output Voltages | 208, 220, 240 |
| Topology | Line interactive |
| Waveform type | Sine wave |
| Transfer Time | 6 ms typical : 10 ms maximum |
| Input | |
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
| Input voltage range for main operations | 140 – 280V |
| Number of Power Cords | 1 |
| Other Input Voltages | 220, 240 |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Typical recharge time | 3hour(s) |
| Replacement Battery | APCRBC117 |
| Expected Battery Life (years) | 3 – 5 |
| RBC Quantity | 1 |
| Battery Charge Power (Watts) | 245 Watts |
| Extendable Run Time | 1 |
| Communications & Management | |
| Interface Port(s) | RJ-45 Serial, SmartSlot |
| Pre-Installed SmartSlot™ Cards | AP9631 |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Emergency Power Off (EPO) | Yes |
| Surge Protection and Filtering | |
| Surge energy rating | 645Joules |
| Filtering | Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Physical | |
| Maximum Height | 85MM, 8.5CM |
| Maximum Width | 432MM, 43.2CM |
| Maximum Depth | 667MM, 66.7CM |
| Net Weight | 37.32KG |
| Conformance | |
| Approvals | C-Tick, CE, EAC, EN 50091-1, EN 50091-2, EN 55022 class A, EN 60950, FCC part 15 class A, GOST, IRAM, UL 1778, VDE |
| Standard warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
