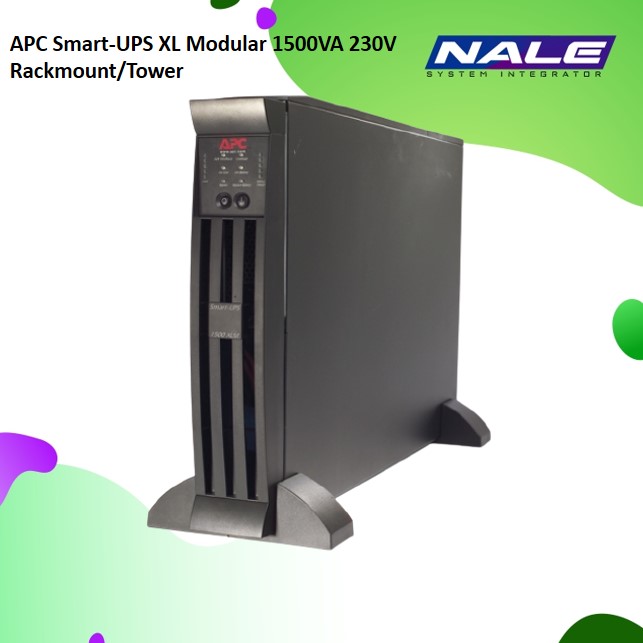

APC Smart-UPS XL Modular 1500VA 230V Rackmount/Tower (SUM1500RMXLI2U)
Rp21.759.552
- Output power capacity : 1.425kWatts / 1.5kVA
- Rack Height: 2U

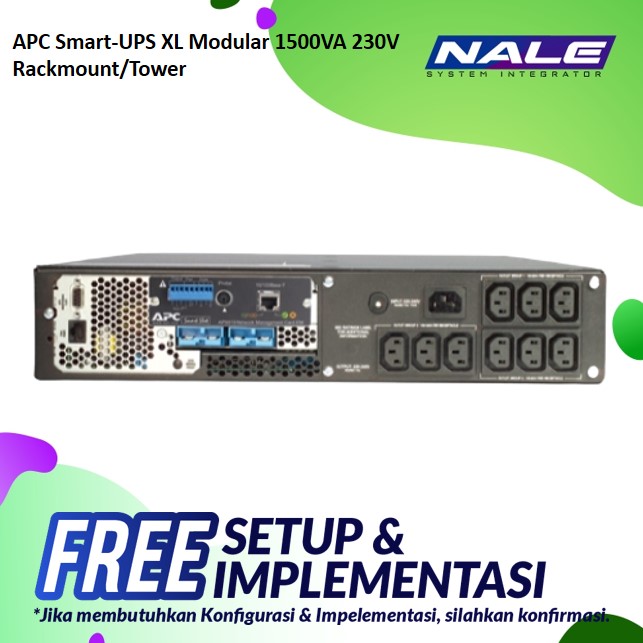

- Output Connections :
(9) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup) - Nominal Output Voltage : 230V
- Nominal Input Voltage : 230V
- Input Connections : IEC 320 C14
- Includes: CD with software, Installation guide, Rack mounting brackets, Rack mounting support rails, Smart UPS signalling RS-232 cable, USB cable, User manual, Web/SNM
Deskripsi
Deskripsi APC Smart-UPS XL Modular 1500VA 230V Rackmount/Tower (SUM1500RMXLI2U)
| Output | |
| Max Configurable Power (Watts) | 1.425kWatts / 1.5kVA |
| Output Voltage Distortion | Less than 5 % at full load |
| Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
| Efficiency at Full Load | 95.0% |
| Output Frequency (sync to mains) | 47 – 53 Hz For 50 Hz nominal Sync to mains |
| Topology | Line interactive |
| Waveform type | Sine wave |
| Maximum Output Current | 15 |
| Bypass | Internal bypass (automatic and manual) |
| Input | |
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
| Input voltage range for main operations | 151 – 302 Adjustable, 160 – 286V |
| Numbet of Power Cords | 1 |
| Batteries & Runtime | |
| Battery type | VRLA |
| Typical recharge time | 3hour(s) |
| Replacement Battery | RBC43 |
| Expected Battery Life (years) | 3 – 5 |
| RBC Quantity | 1 |
| Battery Charge Power (Watts) | 199 Watts |
| Communications & Management | |
| Interface Port(s) | DB-9 RS-232c RJ-45/100 Base-T, USB |
| Control panel | LED status display with load and battery bar-graphs and on line : on battery : replace battery : overload and bypass indicators |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Emergency Power Off ( EPO) | Optimal |
| Surge Protection and Filtering | |
| Surge energy rating | 490Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Physical | |
| Maximum Height | 86MM, 8.6CM |
| Maximum Width | 432MM, 43.2CM |
| Maximum Depth | 678MM, 67.8CM |
| Net Weight | 46.82KG |
| Conformance | |
| Approvals | C-Tick, CE, EN 50091-2, EN 55022 class A, EN 61000-3-2, GOST |
| Standard warranty | 2 years repair or replace |
