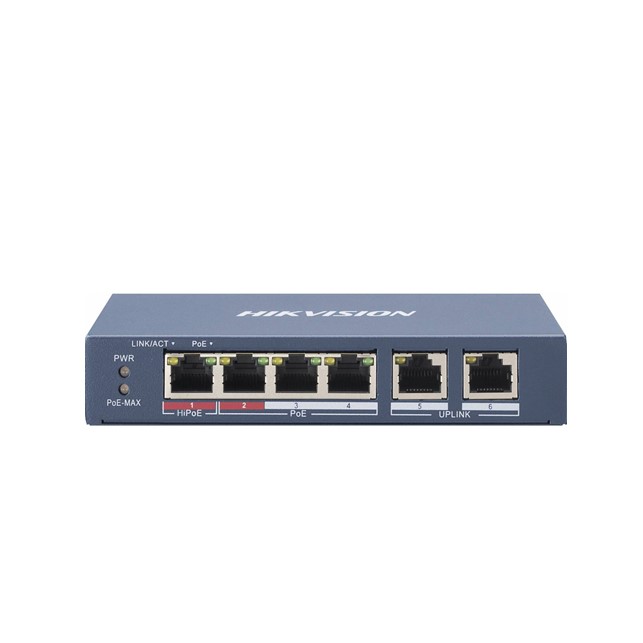

Hikvision 4 Port Fast Ethernet Unmanaged POE Switch (DS-3E0106HP-E)
Rp889.538
- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Deskripsi
Deskripsi Hikvision 4 Port Fast Ethernet Unmanaged POE Switch (DS-3E0106HP-E)
| PoE Power Supply | |
| PoE Standard | Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 2 to 4: IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | Support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide power supply simultaneously. |
| PoE Port | Ports 1 to 4 |
| Max. Port Power | Port 1: 60 W
Ports 2 to 4: 30 W |
| PoE Power Pudget | 60 W |
| Max. Power Consumption | 65 W |
| Network Parameters | |
| Port Number | 1 × 10/100 Mbps Hi-PoE port, 3 × 10/100 Mbps PoE ports, and 2 × 10/100 Mbps RJ45 ports |
| Port Type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Forwarding Mode | Store-and-forward switching |
| Working Mode | Standard mode (default); Extend mode |
| General | |
| Shell | Metal material, fan-free design |
| Power Supply | 48 VDC, 1.35 A |
| Power Consumption In Idle | 5 W |
Datasheet-of-DS-3E0106HP-E-4-Port-100-Mbps-Unmanaged-PoE-Switch
