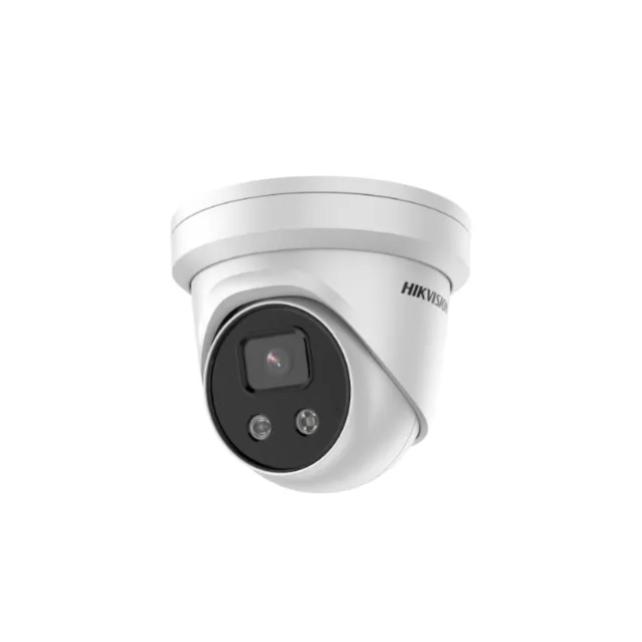

HikVision 4K AcuSense Fixed Turret Network Camera (DS-2CD2386G2-IU)
Rp3.723.846
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Built-in microphone for real-time audio security(-U)
- Water and dust resistant (IP67)
Deskripsi HikVision 4K AcuSense Fixed Turret Network Camera (DS-2CD2386G2-IU)
| Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Iris Type | Fixed |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | · 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°
· 4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102° · 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60° |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Iluminator | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| User/Host | Up to 32 users,3 levels: Administrator, Operator and User |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Network Storage | · MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
· Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Video | |
| Max. Resolution | 3840 × 2160 |
| Main Stream | · 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
· 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub Stream | · 50 Hz: 25 fps (640 × 480, 640 × 360)
· 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | · 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
· 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) · *Third stream is supported under certain settings. |
| Video Compression | · Main stream: H.265/H.264
· Sub-stream: H.265/H.264/MJPEG · Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | Support 1 fixed region for main stream and sub-stream |
| Image | |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| SNR | ≥ 52 dB |
| Deep Learning Function | |
| Face Capture | Yes |
| Perimeter Protection | · Line crossing detection, intrusion detection, region entrance detection, region exiting detection
· Supports human and vehicle targets classification |
| Interface | |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-in Microphone | Yes |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Audio Type | mono sound |
