| Thermal Module |
|
| Image Sensor |
Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution |
256 × 192 |
| Pixel Pitch |
12 μm |
| Spectral Range |
8 μm to 14 μm |
| NETD |
< 40 mK (25°C, F1.0) |
| Focal Length |
6.9mm |
| IFOV |
1.74 mrad |
| Field of View |
24.9° × 18.7° (H × V) |
| Min. Focusing Distance |
1 m |
| Aperture |
F1.0 |
| Digital Zoom |
×2, ×4 |
| Optical Module |
|
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Resolution |
2688 × 1520 |
| Min. Illumination |
0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR |
| Shutter Speed |
1 s to 1/100,000 s |
| Focal Length |
6.4 mm |
| Field of View |
53.0° × 28.0° (H × V) |
| Aperture (Range) |
F1.6 |
| WDR |
120 dB |
| Network |
|
| Protocols |
IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,TLS |
| Network Storage |
MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| API |
ISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G) |
| Simultaneous Live View |
Up to 20 channels |
| User/Host level |
Up to 32 users, 3 levels: Administrator, Operator, User |
| Security |
User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering |
| Client |
iVMS-4200, Hik-Connect |
| Web Browser |
Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 + |
DS-2TD2628-7_QA_Datasheet.pdf

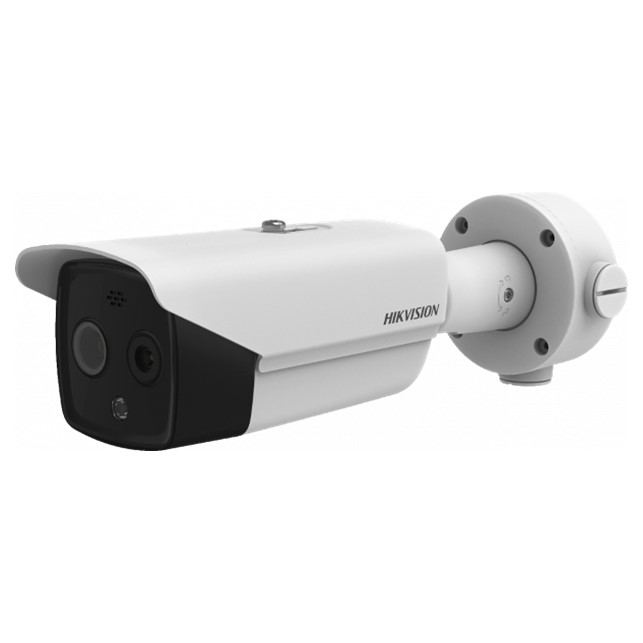

![Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera [ DS-2TD2628-7/QA ] - Gambar 1](https://saintech.co.id/wp-content/uploads/2024/11/DS-2TD2628-7_QA.jpg "DS-2TD2628-7_QA")

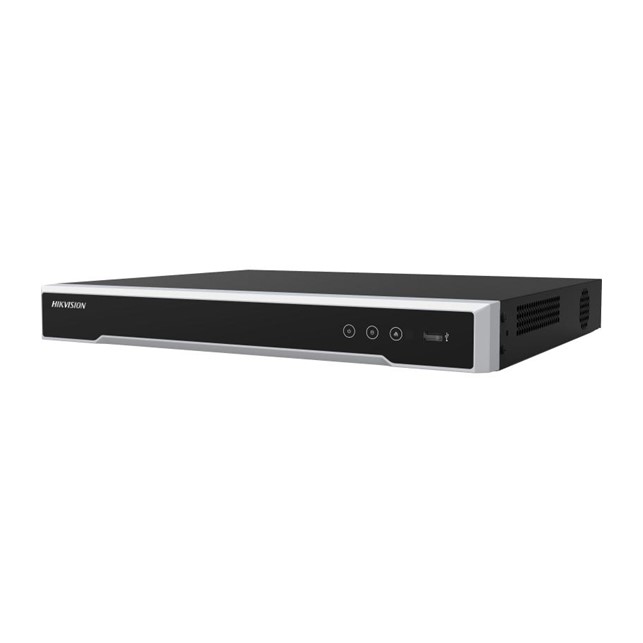

![Hikvision 32-ch 1U 8K NVR [ DS-7632NI-M2 ]](https://saintech.co.id/wp-content/uploads/2024/11/DS-7632NI-M2.jpg)
