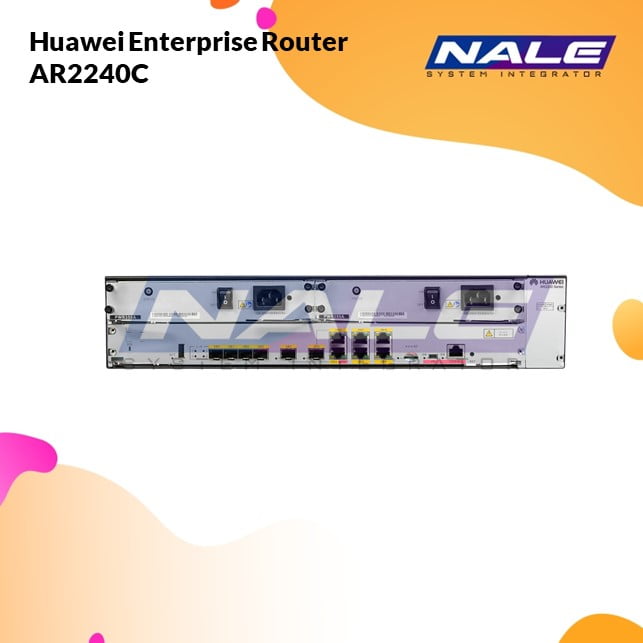

Huawei Enterprise Router AR2240C

System parameters

Processor

6-core, 1.2 GHz

Memory

2 GB

Flash

32 MB

Micro SD card (default: sd1)

2 GB

Hard disk

Not supported

Dimensions and weight

Dimensions (H x W x D)

• With no mounting bracket installed: 88.1 mm x 442.0 mm x 470.0 mm (3.47 in. x 17.40 in. x 18.50 in.)
• With mounting brackets installed: 88.1 mm x 482.6 mm x 470.0 mm (3.47 in. x 19.00 in. x 18.50 in.)

Weight

12 kg (26.46 lb)

Power specifications

Power consumption (empty chassis)

Typical power consumption

110 W

Maximum power consumption

125 W

Heat dissipation

Fans

Built-in, unpluggable fans

Airflow (facing the front panel)

Left to right

Interface density

Management interfaces

1 (RJ45)

CON/AUX interface

1 (RJ45)

USB 2.0 interfaces

1

Service interfaces (standard configuration)

WAN interfaces: four GE electrical interfaces, two GE combo interfaces, and four GE optical interfaces

Extended slots

• 4xSIC
• 2xWSIC
• 2xXSIC

Environment parameters

Operating temperature

0°C to 45°C (32°F to 113°F)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Operating relative humidity

5% to 95%, noncondensing

Operating altitude

< 5000 m (16404.2 ft.)

Part number

• 02350KKF
• 02351CXL
  NOTE:

  The routers manufactured after June 30, 2020 support only V200R010C00 and later versions.

• 02351YCH
  NOTE:

  Only V200R010C00 and later versions are supported.
