Power Saving Back-UPS RS 1500 230V (BR1500GI)
Rp7.936.056
- PF: 0.6
- Back up time Full Load: 3.7 min (865 watt)
-
Output power capacity: 865 Watts / 1.5kVA
-

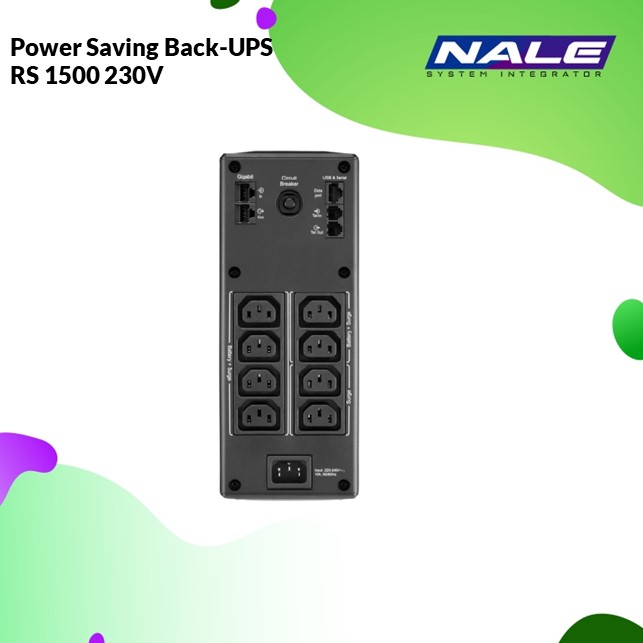

Output Connections:
(5) IEC 60320 C13 (Battery Backup)(2) IEC Jumpers (Battery Backup)(5) IEC 60320 C13 (Surge Protection) -
Nominal Output Voltage: 230V
-
Nominal Input Voltage: 230V
-
Input Connections: IEC 60320 C1
Deskripsi
Deskripsi Power Saving Back-UPS RS 1500 230V (BR1500GI)
| Output | |
| Max Configurable Power (Watts) | 865 Watts / 1.5kVA |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
| Load Crest Factor | 3 : 1 |
| Topology | Line interactive |
| Waveform type | Stepped approximation to a sinewave |
| Transfer Time | 10 ms typical : 12 ms maximum |
| Input | |
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
| Input voltage range for main operations | 156 – 300 Adjustable, 176 – 294V |
| Number of Power Cords | 1 |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Typical recharge time | 8hour(s) |
| Expected Battery Life (years) | 3 – 5 |
| RBC Quantity | 1 |
| Battery Charge Power (Watts) | 23 Watts |
| Battery Volt-Amp-Hour Capacity | 216 |
| Communications & Management | |
| Interface Port(s) | Optional Simple Signalling RS232 cable, USB |
| Control panel | Multifunction LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge Protection and Filtering | |
| Surge energy rating | 441Joules |
| Data Line Protection | RJ11 analog phone line for phone/fax/modem/DSL, RJ45 network line – 10/100/1000 Base-T Ethernet |
| Filtering | Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous |
| Physical | |
| Maximum Height | 301MM, 30.1CM |
| Maximum Width | 112MM, 11.2CM |
| Maximum Depth | 380MM, 38.0CM |
| Net Weight | 12.7KG |
| Conformance | |
| Approvals | A-Tick, C-Tick, CE, GOST, GS Mark, Telepermit, TÜV |
| Equipment protection policy | Lifetime : 150000 euros, Lifetime : 200000 AUD, Lifetime : 75000 GBP |
| Standard warranty | 2 years repair or replace, 3 years repair or replace for European Union countries |
| Sustainable Offer Status | |
| RoHS | Compliant |
| PEP | Available in Documentation tab |
| EOLI | Available in Documentation tab |
