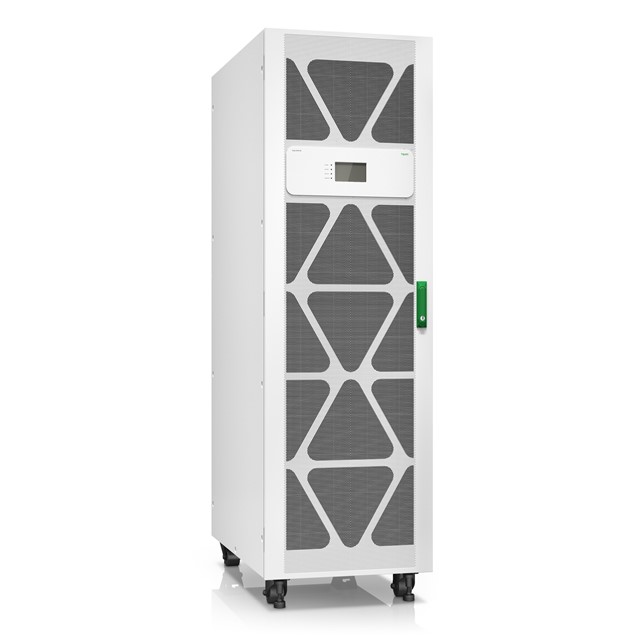

Schneider Electric Easy UPS 3M 80kVA 400V 3:3 UPS for internal batteries, Start-up 5×8
Rp246.464.400
In Stock
Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 80 kVA 3-phase UPS. With advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure connected to give you peace of mind with cloud-based remote monitoring and management. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab. Includes 5×8 start-up service.
Deskripsi
| Presentation | Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 80 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab. Includes 5×8 start-up service. |
|---|---|
| Lead time | Usually Ships within 6 Weeks |
| Main Input Voltage | 400 V 3 phases |
|---|---|
| Product or component type | Uninterruptible power supply (UPS) |
| Other Input Voltage | 380 V 415 V |
| Main Output Voltage | 400 V 3 phases |
| Other Output Voltage | 380 V 415 V |
| Rated power in W | 80 kW |
| Rated power in VA | 80 kVA |
| Provided equipment | Dust filter Installation guide Start-up service |
| Range of product | Easy UPS 3M |
| Battery type | VRLA |
|---|---|
| Battery voltage | 240 V |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Max current discharge | 222 A |
| Colour | White (RAL 9003) |
|---|---|
| Height | 197 cm |
| Width | 60 cm |
| Depth | 100 cm |
| Net weight | 339 kg |
| USB compatible | Yes |
| Maximum input current | 104 A |
|---|---|
| Max short time withstand current | 10 kA |
| Input harmonic distortion | Less than 3 % for full load |
| Load power factor | 0.5 leading to 0.5 lagging without derating |
| Input Power Factor at Full Load | 0.99 |
| Input voltage limits | 342…477 V |
| Number of input connectors | 1 hard wire 5-wire (3P + N + E) |
| Network frequency | 40…70 Hz |
| Maximum configurable power in VA | 80 kVA |
|---|---|
| Maximum configurable power in W | 80 kW |
| Output frequency | 50 Hz sync to mains 60 Hz sync to mains |
| Harmonic distortion | Less than 3 % |
| Output harmonic distortion | < 3% linear load and < 5% non-linear load |
| Output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Bypass type | Built-in static bypass |
| Product certifications | CE EAC RCM |
|---|
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…1500 ft |
| Ambient air temperature for storage | -15…40 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.0000000000…4572.0000000000 m |
| Acoustic level | 65 dBA |
| Heat dissipation | 14850 Btu/h |
| IP degree of protection | IP20 |
| Control panel | Touch screen LCD user interface |
|---|
