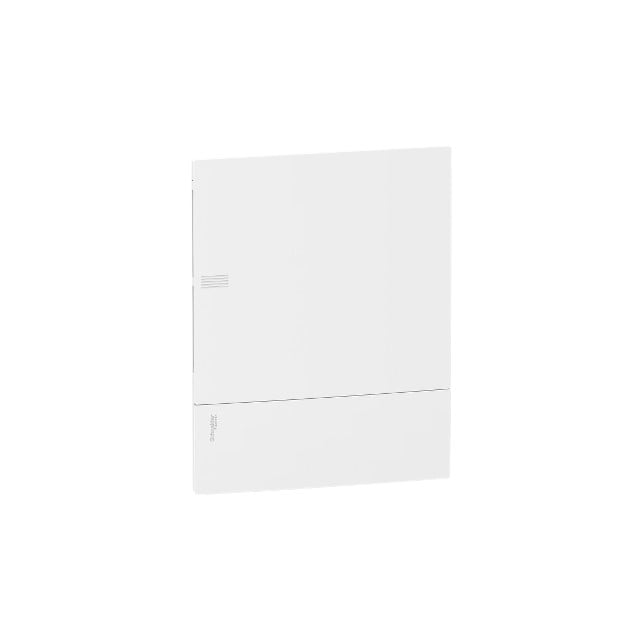

SCHNEIDER MINI PRAGMA BOX MCB 12GROUP FLUSH (MIP22212 )
Rp788.819
Deskripsi
Specifications
| range | Resi9 |
|---|---|
| product name | Resi9 MP |
| product or component type | Enclosure |
| enclosure type | Modular enclosure |
| Nb of 18 mm modules per row | 12 |
| Nb of horizontal rows | 2 |
| Type of door | Plain |
| width | 270 mm wall: 294 mm outside: |
| height | 353 mm wall: 377 mm outside: |
| depth | 18 mm outside: 80 mm wall: 98 mm total: |
| enclosure mounting | Flush |
|---|---|
| 9 mm pitches | 24 |
| total number of 18 mm modules | 24 |
| [In] rated current | 63 A |
| type of rail | 35 mm asymmetrical rail |
| mounting plate description | Without mounting plate |
| cable entry | Pre-cutted holes |
| terminal block function | Earth / neutral |
| number of terminal blocks | 1 earth (screwed) with 16 outgoers 1 neutral (screwed) with 16 outgoers |
| distribution block outgoers | 2 x 16 mm² for earth 2 x 16 mm² for neutral 6 x 6 mm² for earth 6 x 6 mm² for neutral 8 x 10 mm² for earth 8 x 10 mm² for neutral |
| enclosure material | Back part: technoplastic Door: technoplastic Front face: technoplastic |
| internal depth | 76 mm |
| colour | Door: white (RAL 9003) Front face: white (RAL 9003) |
| market segment | Small commercial Residential |
| standards | IEC 61439-1 IEC 61439-3 IEC 60670-1 IEC 60670-24 |
|---|---|
| quality labels | IMQ |
| fire resistance | Door: 650 °C Back part: 650 °C Front face: 650 °C |
| IP degree of protection | IP40 |
| IK degree of protection | IK07 |
| ambient air temperature for operation | -25…60 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.412 kg |
| Package 1 Height | 9.0 cm |
| Package 1 width | 29.5 cm |
| Package 1 Length | 37.5 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Weight | 7.948 kg |
| Package 2 Height | 30.5 cm |
| Package 2 width | 40.5 cm |
| Package 2 Length | 53.5 cm |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 80 |
| Package 3 Weight | 139.168 kg |
| Package 3 Height | 122.0 cm |
| Package 3 width | 80.0 cm |
| Package 3 Length | 120.0 cm |
| Warranty | 12 months |
|---|
