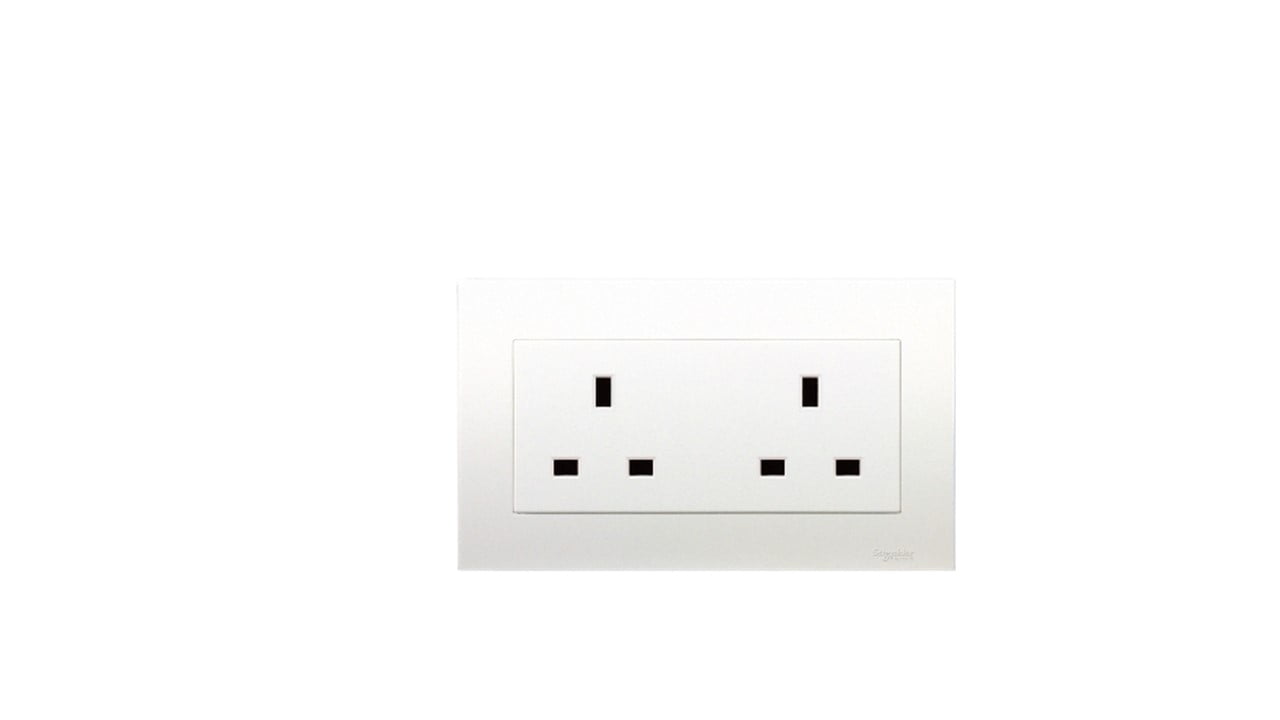

STOP KONTAK AC VIVACE KBT426 2G 3PIN SOCKET SCHNEIDER
Rp136.594
Deskripsi
Specifications
| product or component type | Socket-outlet |
|---|---|
| device short name | KB426 |
| device presentation | Complete mechanism |
| Colour tint | White |
| outlet poles configuration | 2P + E |
|---|---|
| number of gangs | 2 gangs |
| material | Polycarbonate: grid plate Polycarbonate: surround Nylon: base |
| projecting depth | 8 mm |
| device mounting | Flush |
| mounting support | Wall mounted |
| fixing mode | By screw M3.5 |
| fixing center | 60.3 mm |
| embedding depth | 35 mm |
| rated current | 13 A at 250 V AC, no inductive load |
| network frequency | 50 Hz |
| contacts material | Brass and phosphor bronze |
| connections – terminals | Pillar terminal |
| terminal identifier | N E L |
| tightening torque | 0.4 N.m |
| clamping connection capacity | 4 mm² 2.5 mm² |
| width | 146 mm |
| height | 86 mm |
| standards | BS 1363-2 SS 145 MS 589 |
|---|---|
| ambient air temperature for operation | -5…40 °C |
| relative humidity | 0…95 % |
| environmental characteristic | Indoor use |
| Package 1 Weight | 124.830 g |
|---|---|
| Package 1 Height | 1.000 cm |
| Package 1 width | 1.000 cm |
| Package 1 Length | 1.000 cm |
| Warranty | 18 months |
|---|
