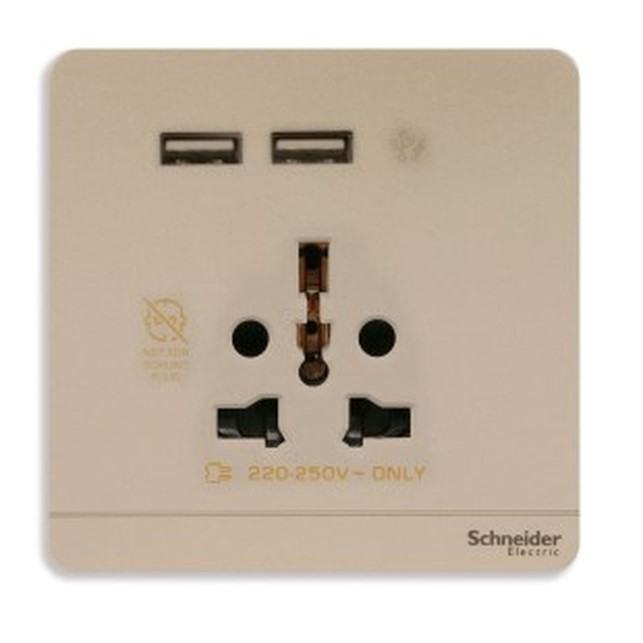

Stop Kontak Schneider AvatarOn, USB charger + 2 socket-outlet, 2P, 16A, Wine Gold
Rp550.458
Deskripsi
Specification
| Product or component type | USB charger + socket-outlet |
|---|---|
| Fixing mode | By screws |
| outlet standard | China |
|---|---|
| Outlet standard description | With earthing contact |
| Integrated connection type | 2 socket-outlet 250 V AC 16 A 50/60 Hz 1 USB type A 5 V DC 2.1 A |
| device mounting | Flush Surface |
| Device presentation | Complete product |
| Mounting support | Mounting box |
| Outlet poles configuration | 2P with shutter |
| Colour tint | Wine gold |
| Surface finish | Glossy |
| Surface treatment | Untreated |
| Ambient air temperature for storage | -20…60 °C |
| Protection type | Current protection |
| Dielectric strength | 2000 V |
| Ambient air temperature for operation | -5…35 °C |
| Service life in cycles | 5000 cycles |
| Connections – terminals | Screw terminal |
| Number of terminals | 3 |
| Screwdriver shape | Phillips combined |
| Number of cables | 2 |
| Clamping connection capacity | 1.5…4 mm² for rigid cable(s) 1.5…4 mm² for stranded cable(s) 1.5…4 mm² for flexible cable(s) |
| Material | PC (polycarbonate): grid plate PC (polycarbonate): surround |
| Wire stripping length | 12 mm |
| Height | 86 mm |
| Width | 86 mm |
| Depth | 38.2 mm |
| standards | UL 498 UL 94 UL 1310 |
